[CSS]floatの練習(3月10日)
3月10日 午前
- レイアウトの種類
- floatの練習
レイアウトの種類
- 固定レイアウト
- 可変レイアウト
:情報の優先順位が付けられないと難しい
・リキッドレイアウト
・フレキシブルレイアウト 例:ケンコーコム - 健康メガショップ、Amazon.co.jp
・可変グリッドレイアウト 例: タイ国政府観光庁
- エラスティックレイアウト
- レスポンシブ・ウェブデザイン
:情報系に向き、ECサイトに不向き - カラムレイアウト
- フリーレイアウト
floatの練習(テキストP92〜95、P116〜129)
float =「浮き上がる」、浮動
・コンテンツを横並びにする時に使われる技法
●inline:block を使うやり方は良くない(ネットにはよく書いてある)
理由: inline:block は、baseline上にコンテンツをのせる
↓
優先順位の高い情報を右に配置することが不可能(floatしかできない)
●.htmlファイルは、優先順位の高い情報から記述する。
そして上から読み込まれる
float解除について
①後続のコンテンツ(今回は#footer)にclear: both;を設定する
問題→ コンテンツ同士間にマージンを設定したい場合、後続のコンテンツにmargin-topを付けられない。#footerはfloatを解除しているため。
②floatをつけたコンテンツを包む親要素(今回は#wrapper)にoverflow: hidden;を設定
3カラムの練習
記述の順番
1. #header
2. #content
3. #sidebar
4. #ad
5. #footer
①完成図
<!DOCTYPE html>
<html lang="ja">
<head>
<meta charset="UTF-8">
<title>3カラムの練習①</title>
<style>
/* reset */
html, body, div {
margin: 0;
padding: 0;
}
body{
margin:0 auto;
background: #CCC;
}
#container{
width: 780px;
background: #FFF;
padding: 10px;
}
#header {
height: 100px;
background: #c6e2ff;
margin-bottom: 10px;
}
#wrapper1 {
overflow: hidden;
margin-bottom: 10px;
}
#wrapper2{
overflow: hidden;
float: left;
width: 670px;
}
#content{
float: right;
width: 500px;
height: 300px;
background: #FFC0CB;
}
#sidebar{
float: left;
width: 160px;
height: 300px;
background: #FFF9B8;
}
#ad{
float: right;
width: 100px;
height: 200px;
background: #794044;
}
#footer{
height: 80px;
background: #007F7F;
}
</style>
</head>
<body>
<div id="container">
<div id="header">#header</div>
<div id="wrapper1">
<div id="wrapper2">
<div id="content">#content</div>
<div id="sidebar">#sidebar</div>
</div><!-- /#wrapper2 -->
<div id="ad">#ad</div>
</div><!-- /#wrapper1 -->
<div id="footer">#footer </div>
</div><!-- /#container -->
</body>
</html>

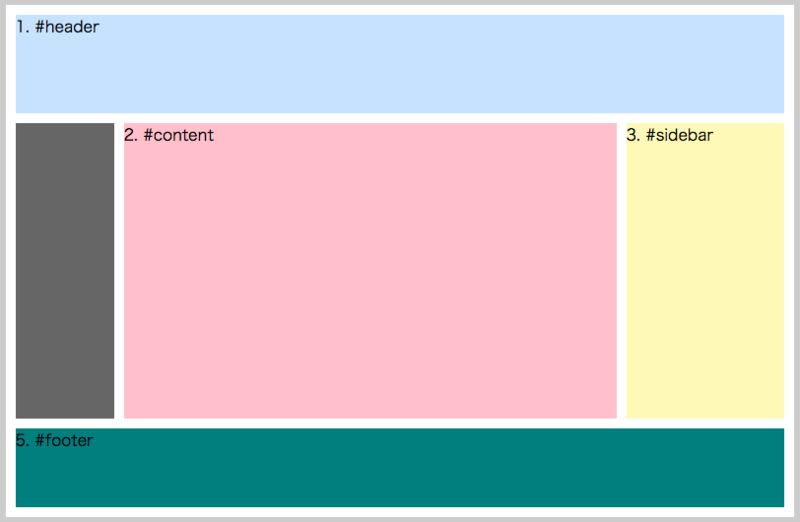

② 完成図
floatは#contentと#sidebarのみにしか使っていません。
#contentと#sidebarを包む#wrapper2は、marginで位置を調整しています。
ただし、#adの文字がどこかに消えてしまいました・・・
<htmlファイルの記述>
<!DOCTYPE html>
<html lang="ja">
<head>
<meta charset="UTF-8">
<title>3カラムの練習①</title>
<style>
/* reset */
html, body, div {
margin: 0;
padding: 0;
}
body {
background: #CCC;
}
#container {
width: 780px;
background: #FFF;
margin: 10px auto;
padding: 10px;
}
#header {
height: 100px;
background: #c6e2ff;
margin-bottom: 10px;
}
#wrapper1{
overflow: hidden;
margin-bottom: 10px;
}
#wrapper2{
width: 670px;
margin-left: 110px;
}
#content {
float: left;
width: 500px;
height: 300px;
background: #FFC0CB;
}
#sidebar {
float: right;
width: 160px;
height: 300px;
background: #FFF9B8;
}
#ad {
width: 100px;
height: 300px;
color: #FFF;
background: #666;
}
#footer {
height: 80px;
background: #007F7F;
}
</style>
</head>
<body>
<div id="container">
<div id="header">1. #header</div>
<div id="wrapper1">
<div id="wrapper2">
<div id="content">2. #content</div>
<div id="sidebar">3. #sidebar</div>
</div><!-- /#wrapper2 -->
<div id="ad">4. #ad</div>
</div><!-- /#wrapper1 -->
<div id="footer">5. #footer </div>
</div><!-- /#container -->
</body>
</html>
